Infrastructure

Coving – Aluminum / PVC coving

Eliminating corners prevents microbiological build up and streamlines the pathways for air flow in these rooms. This means coving is an essential part of a cleanroom that needs to be installed and maintained effectively.

Cleanrooms are vital spaces for both pharmaceutical and specialized industries, where compliant products are actually generated. In these rooms, the close control of production conditions is required to ensure high-quality output that satisfies industry guidelines.

The levels of pollutants, particles, and any other potential contaminants must be kept to a certifiable minimum. T successfully achieve this controlled environment, all aspects of the design and operation of the space is optimized to carefully reinforce control and accountability.

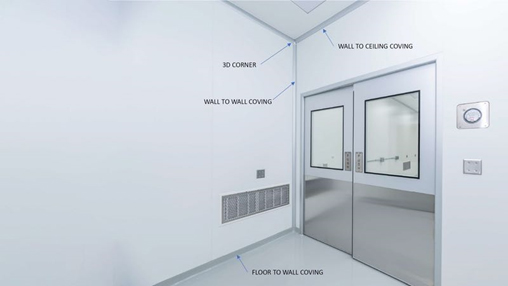

A coving is a piece of material that has been fitted to cover the seam or transition between two surfaces, such as the edge between two walls or between a wall and the ceiling or floor. It can install a radius (when it is curved) or a 45-degree angle instead of the traditional 90-degrees of a room's corner.

In cleanrooms, coving is required for use to make sure that corner transitions are fully flush and seamless with no sharp corners present, because this helps reduce material buildup and simplifies regular cleaning. From pharmaceuticals to food processing, clinical laboratories through other sterile environments, coving helps make cleanrooms effective and easy to maintain.

Types of Covings available:

• Natural Aluminium covings.
• Powder coated Aluminium covings.
• PVC soft Edge Covings of different radius

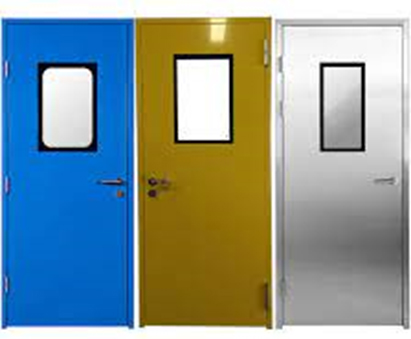

Clean room doors

These doors are designed to meet the most stringent requirements for clean room and hygienic applications. Designed for interior applications in humid or corrosive environments, these doors do not swell, rot, warp, rust or attract bacteria thus making the door extremely hygienic and perfect for the pharmaceutical, leisure, food, and healthcare sectors. Most facilities incorporate multiple pressure steps within the building’s structure.

Features:

• Made for Interior applications
• Designed to meet hygienic and stringent requirement of clean rooms.
• Can be Single/Double leaf door
• Customized as per requirement
• Allows reduction in system capacity by 30 to 65%
• Acoustic
• Prevents Bacteria Growth
• Flush Surface, Easy to Clean
• No Pressure Leakage

Specifications:

Frame Sheet Thickness:	1.2mm
Leaf Sheet Thickness:	0.8mm
Infill:	Honeycomb Kraft Paper
Glass:	Double Glazed Glass 5mm Thick
Lock System Standard:	Mortise Lock OML-33
Pivot/Hinge SS Butt Hinge:	OZ-SS-BH 4x3x3.
Door Closer:	NSK-680
Other Hardware:	Kick Plate (Optional) Concealed Flush Bolt (Double Leaf Door) Drop Seal Door Bumpers Door Stopper
MOC:	GPSP Sheet with Zinc Coating/Stainless Steel
Finish:	Epoxy Polyester Powder Coating / SS
Door Dimension:	up to 2400mm wide and 3000mm height

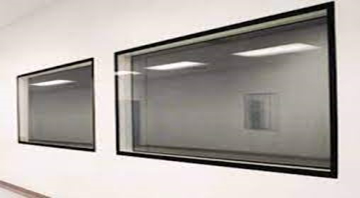

Double Glazing View Panels

These Double View Panel Windows system are especially designed for the cleaning needs of the pharmaceutical clean room. It is completely silicone sealed, and includes a micro-perforation profile with an integral silica gel moisture absorption system, designed to eliminate fogging. Rounded corners add to the strength of the clean room window unit and enhance their appearance.

Tempered / Plain glass (4-5mm) in place of the laminated glass is available upon request.

• Two Glass of 4/5 mm thick on both side.
• Double glazed flush view panels .
• Double glazed flush on brick wall
• Silica gel filled in the frame inside
• 90Degree angles on the corners
• Completely seal with silicon sealant.

Return Air Risers

Return Air Riser are fabricated and supplied as per customer requirement. Cut outs are made from Lazar cutting machine that matches with the grills perfectly.

Commercial Areas

• Different sizes.
• Safe use .
• Quality approved.
